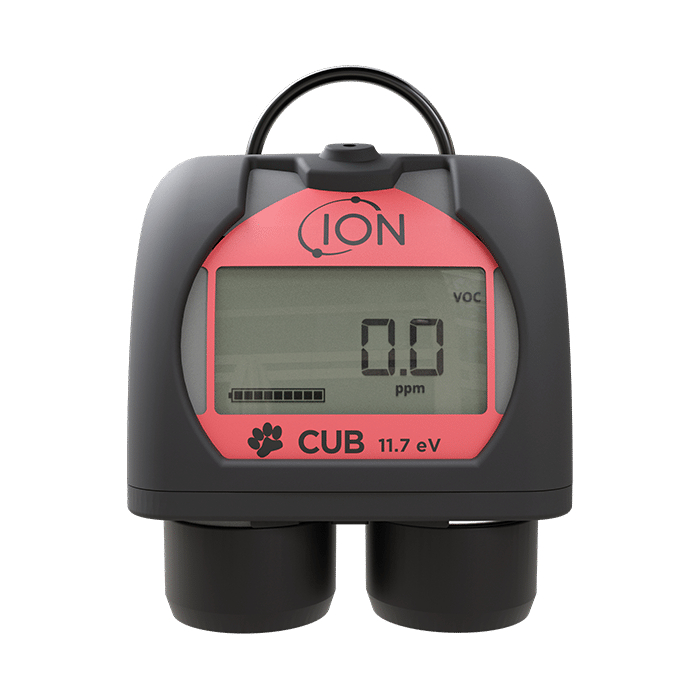

ION Cub 11.7 eV Clips-On VOC Gas Detector

The Cub 11.7 eV clip-on VOC gas detector is worn in the breathing zone to detect volatile organic compounds and keeps you safe in your work environment.

Our personal VOC gas monitor is the world’s smallest and lightest wearable VOC gas detector. When workers’ exposure exceeds preset limits, the gas monitors alert you to the presence of VOC gases with audible, vibrating, and flashing LED alarms. Readings are displayed on a bright, backlit LCD screen with a selectable data logging interval.

It has been independently verified that Cub’s patented photoionization detection (PID) sensor technology delivers the best performance in terms of speed, accuracy, and moisture resistance.

Our personal VOC gas monitor is the world’s smallest and lightest personal PID monitor, designed for the accurate detection of volatile organic compounds and other gases—such as acetylene, methanol, and formaldehyde—that require a higher energy output.

Superior Performance

  • Unmatched sensitivity detects VOCs down to the ppb level
  • Gas detection range from 0.5 to 5,000 ppm
  • Built-in humidity resistance with no need for compensation
  • Contamination-resistant design for long-term field operations

Superior Safety

  • Rapid (<11 seconds) response to hazardous gases and vapors
  • Clear audible, visual, and vibrating alarms
  • Wide for clear reading
  • LCD screen
  • Battery life up to 12 hours
  • ATEX complies with IECEx certification

Minimum Downtime

  • Quick start without a complicated setup
  • Up to 12 hours of battery life with continuous use
  • A simple, icon-based menu requires minimal user training
  • Direct USB connection for fast data transfer
SpecificationsValue
Sensitivity0.5 ppm (500 ppb) ****
Accuracy± 12% of the display reading****
Response<13 seconds (T90)
Approvalsll 1 G Ex ia llC T4 Ga (-20 °C ≤ Ta ≤ 55 °C)
Baseefa11ATEX0027
IECEx BAS 11.0014
U.S. and Canadian approvals: Class I, II, and III; Division I; Hazardous (Classified) Locations
BatteryBattery life of up to 12 hours
Battery charging time: 4 hours
PID lamp options11.7 eV
Data Logging30,000 readings
CommunicationsUSB 2.0
AlarmsLEDs, audio, and vibration; Sounder: 95 dB at 300 mm
Pre-programmed TWA and STEL occupational exposure alarm levels on all models
Temperature0°C to 55°C
Weight and Dimensions111 g (2.91 oz)
61 x 66 x 59 mm (2.4 x 2.6 x 2.3″)
Resolution11.7 eV: 0.1 ppm
Range**0–5,000 ppm ****#
Calibration2-point calibration via the docking station
UpgradeableN/A
IP RatingIP65** (heavy rain)
LCD DisplayBacklit, multicolor
Flow RateN/A (no pump)
