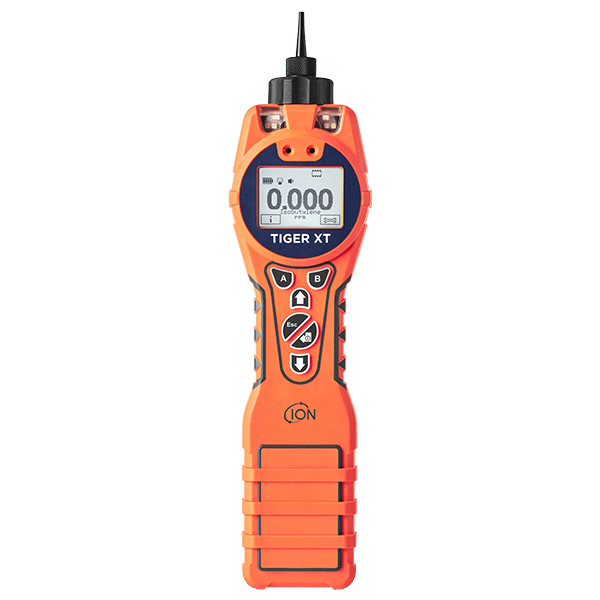

ION Tiger Portable VOC and Benzene Gas Detector

The Tiger XT’s photoionization detection (PID) technology has been independently verified to deliver the best performance on the market in terms of speed, accuracy, and resistance to humidity and contamination, thanks to its patented Fence Electrode Technology. The patented Fence Electrode Technology and contamination-preventing design ensure optimal performance in humid and heavily contaminated environments, extending uptime in the field.

The Tiger XT is the most advanced handheld VOC detector on the market with the widest measurement range, accurately detecting gases from 1 part per billion (ppb) up to 20,000 parts per million (ppm). The Tiger XT has the fastest response time on the market—just two seconds—and clears just as quickly. The Tiger XT handheld VOC gas detector can detect over 750 VOCs and toxic compounds!

Key Features

The enhanced, rugged design can withstand harsh environments
Comprehensive internal gas table containing more than 750 VOCs and toxic compounds
<2-second response time—one of the fastest and most accurate results on the market
Instant alerts with a loud 95 dBA siren: RED and AMBER
The moisture-resistant and stain-resistant design ensures optimal performance

Typical Applications

Environmental Monitoring
Soil Contamination Detection
VOCs at the Landfill Site
Entry to the Enclosed Area
Emergency Response
Wing Tank Inlet
Medical Gases in the Hospital
Unreported Emissions

Specifications	Value
Minimum Resolution	10.6 eV: 1 ppb or 0.001 mg/m³* 11.7 eV: 0.6 ppm (600 ppb)*
Detectable Range**	10.6 eV: 1 ppb up to 20,000 ppm* 11.7 eV: 9,000 ppm*#
Response Time	10.6 eV: T90 < 2 seconds 11.7 eV: <6 seconds
Accuracy***	10.6 eV: ± 5 % display readings or ± 1 digit* 11.7 eV: ± 12 % display reading*
Approvals	II 1G Ex ia IIC T4 Ga Tamb = -25 °C ≤ Ta ≤ +45 °C (with lithium-ion battery pack) Tamb = -25 °C ≤ Ta ≤ +40 °C (with alkaline battery pack) IECEx ITS 22.0025X ITS-I22ATEX35111X ITS22UKEX0635X 3193491 complies with UL Standard 913, 61010-1, and is certified to CAN/CSA Standard C22.2 No. 61010-1 Class 1, Division 1. Approval for Groups A, B, C, and D, T4
Battery Life	Li-ion: up to 24 hours of battery life, 8-hour charge time Alkaline: 3 AA batteries, typically 8.5 hours of battery life
Lamps	10.6 eV Krypton PID lamp (standard) 10.0 eV and 11.7 eV are available
Data Logging*	120,000 points, including the date and stamp
Communication	Direct USB 1.1 communication
Calibration	2-point and 3-point calibration (using the calibration kit accessory)
Alarm	Flashing LEDs: Amber (low alarm), Red (high alarm) Sound level: 95 dBA at 300 mm (12″) Vibration when the alarm sounds programmed TWA and STEL*
Flow Rate	≥ 220 ml/min (with blocked-flow alarm)
Humidity	0-99% RH (non-condensing)
Protection	Designed to meet IP65 standards EMC tested in accordance with EN 61326-1:2013, EN 50270:2015, and CFR 47:2008 Class A
Weight & Dimensions	370 mm (H) x 91 mm (W) x 60 mm (D) 870 g
