GDSFX Ex-proof Catalytic (Pellistor) Gas Detectors
GDSFX Series
Ex-proof Catalytic (Pellistor) Gas Detectors
Used for fast detection of flammable explosive gases. It is an ATEX and IECEx certified gas detection solution suitable for use in potentially explosive environments. Easily integrated into your security system with relay outputs, 4-20mA analog signal output and Modbus RS485 signal output.
Quick Specs
- Power: 16V ~ 32V DC (24V DC nominal)
- Communication: 3 Relays, 4-20mA Analog, Modbus RS485
- Conformity: ATEX, IECEx Certified (Zone 1, Zone2)
- IP65 Class Water and Dust Resistance
- Durable Standard Aluminum Body
- Available in Stainless Steel Body
Superior Technology in Gas Detection
GDSFX Catalytic Fixed Gas Detectors open a new chapter in industrial safety by offering superior sensitivity and reliability in the detection of combustible gases. GDSFX Catalytic series instruments utilize catalytic sensor technology to detect the leakage of various combustible gases such as methane, propane and hydrogen. These sensors have a catalyst surface where combustible gases react with oxygen and use the heat difference in the reaction to quickly and accurately detect gases at risk of fire.
The LCD display provides users with instant gas readings, instrument status and alarm information in a clear and easy-to-understand manner. The display’s user-friendly interface allows easy configuration of instrument settings and alarm limits. Modbus RS485 communication capabilities allow the detector to be integrated into control systems and monitored remotely, so plant staff can easily monitor multiple detectors from a centralized location.
GDSFX Catalytic Gas Detectors are designed for high performance and durability in potentially explosive hazardous industrial environments. With its embedded software, the instrument reduces the need for calibration, increasing operational efficiency and reducing maintenance costs. These features are especially valuable in high-risk areas such as petrochemical plants, paint industry, flammable liquid and gas storage facilities.
- Sensor handling algorithm for long sensor life and less frequent calibration
- Up to 3 years of sensor life
- High resolution LCD display for clear view and easy reading
- Modern gas level indicator showing current readings

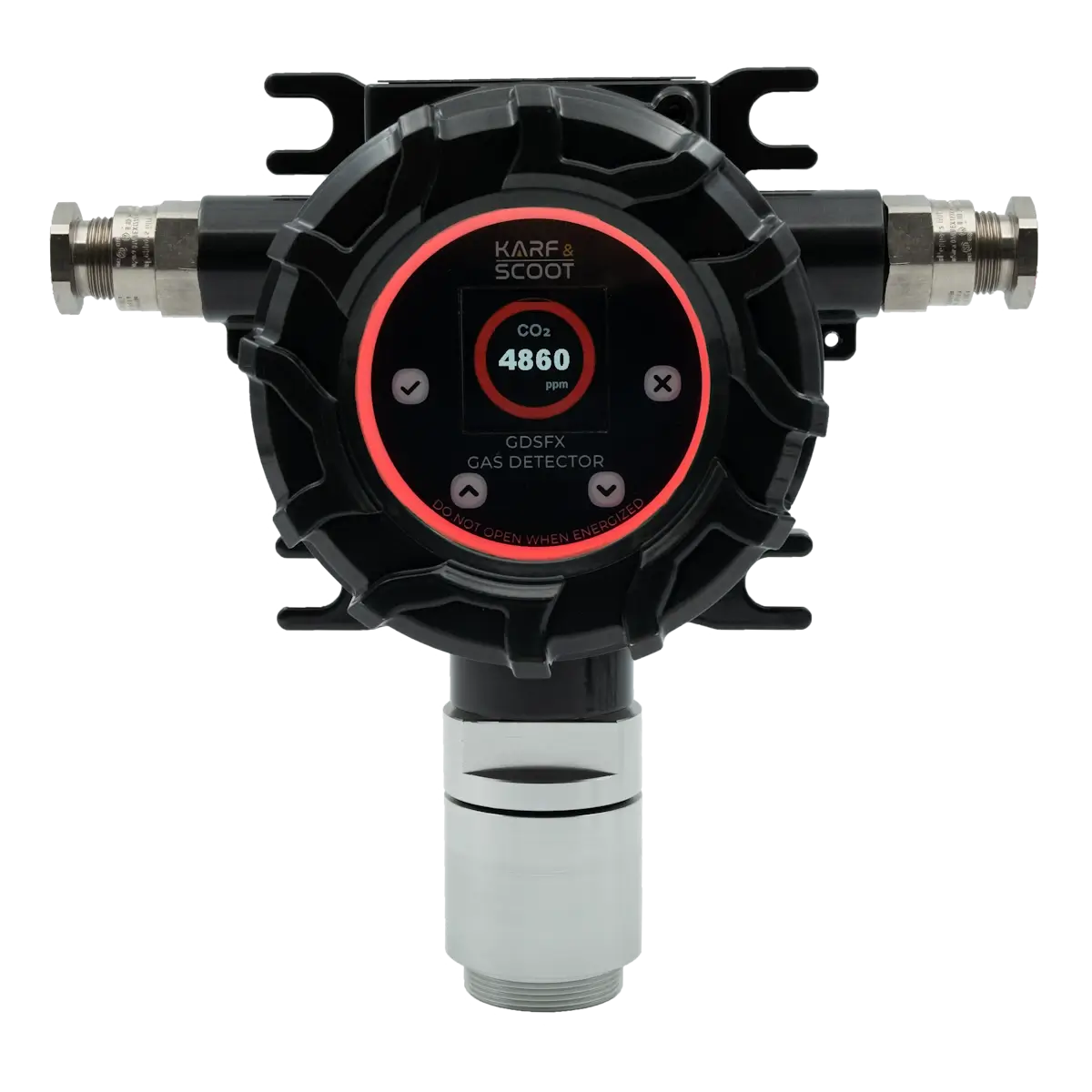

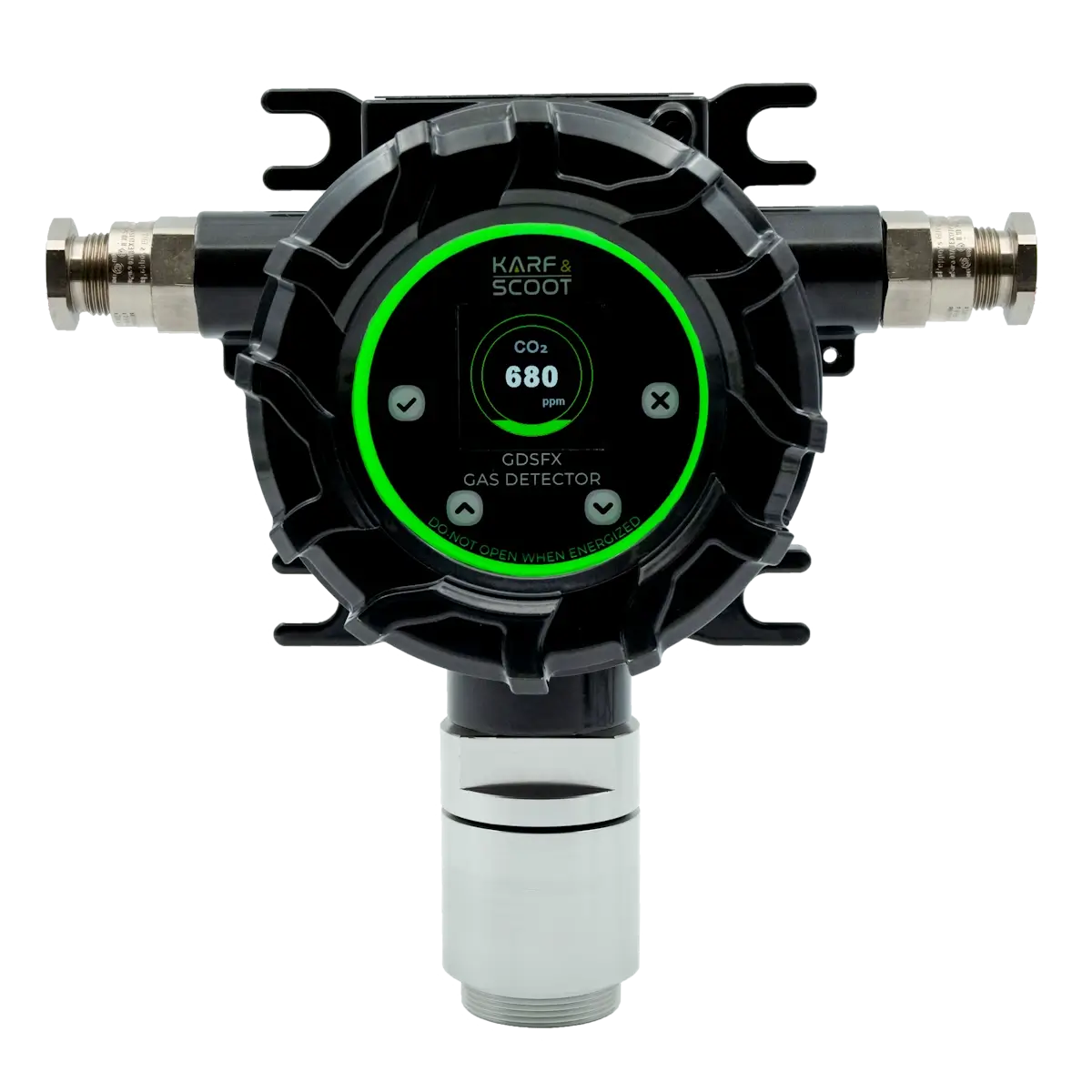

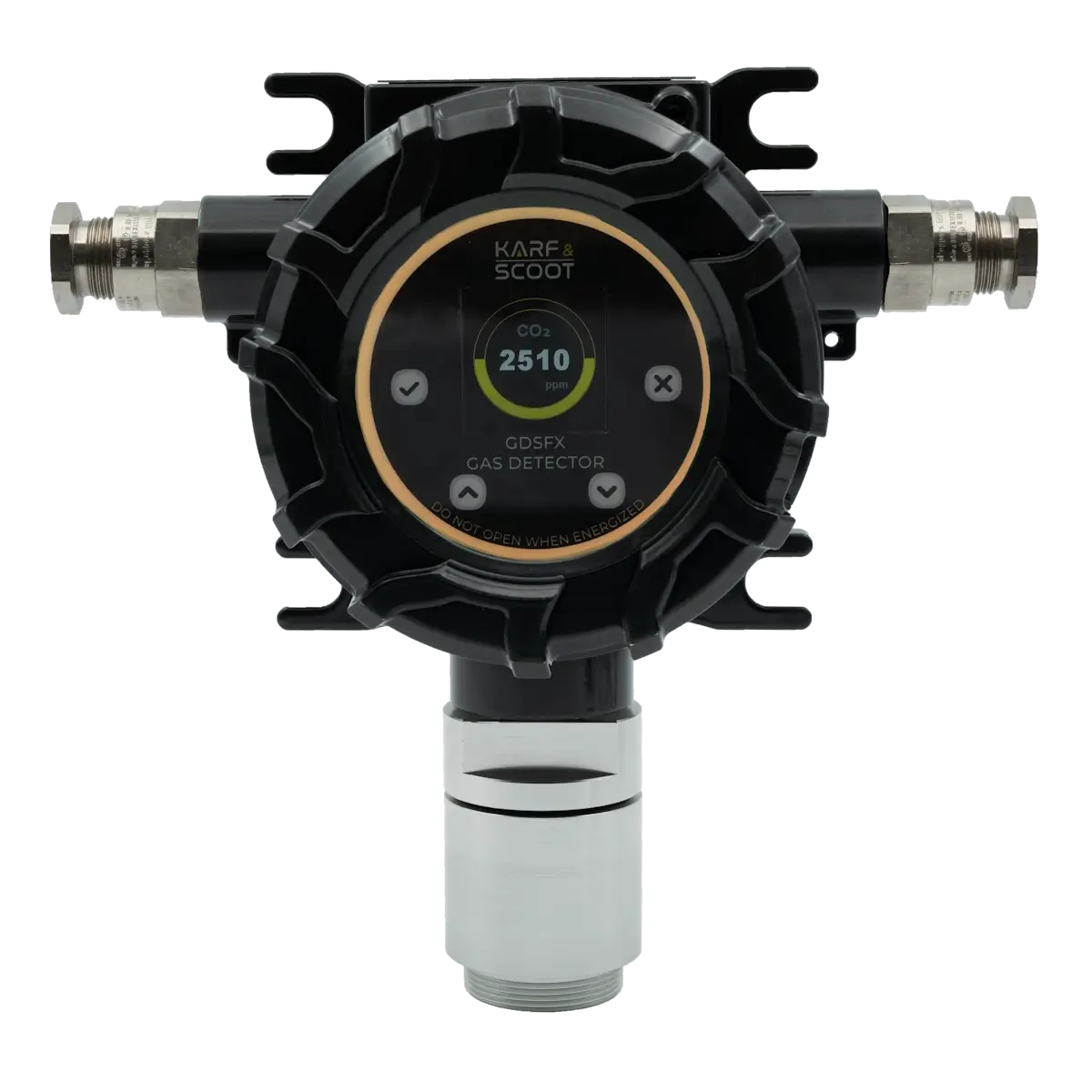

- 3-color alarm status indication LEDs (green, yellow, red)

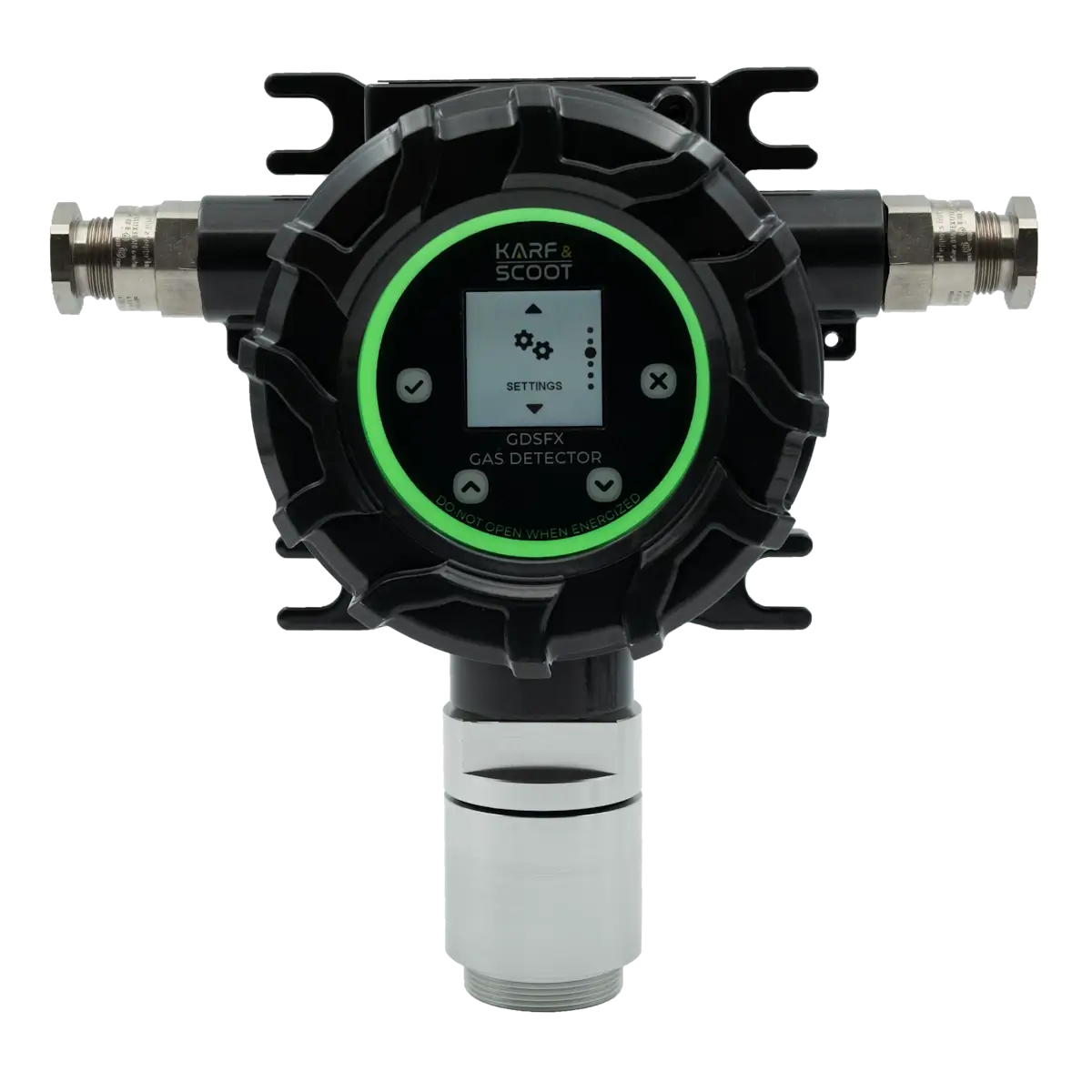

- Easy configuration with a simple interface and 4 buttons
- Safe and comfortable handling with magnetic stylus
- Seamless communication with all modern automation systems with RS485 ModBus, 4-20mA analog, contact relay outputs
- Rich package contents with wall & pipe mounting brackets, magnetic control stylus, and exproof glands
| Power | 24 VDC ± 25% |
| Detection Range | 0 – 100 %LEL |
| Resolution | 1 %LEL |
| Response | < 10s |
| Sensor Type | Catalytic (Pellistor) |
| Analog Output | 4~20 mA |
| Digital Output |
3 Relays (NO or NC)
RS485 Modbus |
| Environmental Conditions |
Temperature: -20/+60°C
Pressure: 86-106 kPa Humidity: 95% RH |
| Weight | 2.55kg |
| Material |
Aluminum
(Stainless Steel Opt.) |
| Sensor Capsule | Stainless Steel |
| ATEX Marking | II 2G Ex d IIC Gb T6 |
| IP Class | IP65 (IP66 Opt.) |
| Warranty | 3 Years |
| Order Code | Gas | Formula |
| GDSFXC01L0100 | Metan | CH4 |
| GDSFXC02L0100 | Propan | C3H8 |
| GDSFXC17L0100 | n-Bütan | C4H10 |
| GDSFXC16L0100 | n-Pentan | C5H12 |
| GDSFXC18L0100 | n-Hekzan | C6H12 |
| GDSFXC19L0100 | n-Heptan | C7H16 |
| GDSFXC20L0100 | n-Oktan | C8H18 |
| GDSFXC36L0100 | Metanol | CH3OH |
| GDSFXC33L0100 | Etanol | C2H5OH |
| GDSFXC26L0100 | Iso-Propanol | C3H8O |
| GDSFXC30L0100 | Aseton | C3H6O |
| GDSFXC43L0100 | Metil-etil-keton | C4H8O |
| GDSFXC04L0100 | Toluen | C7H8 |
| GDSFXC34L0100 | Etil asetat | C4H8O2 |
| GDSFXC03L0100 | Hidrojen | H2 |
| GDSFXC06L0100 | Petrol buharı | N/A |
| GDSFXC27L0100 | Etilen | C2H4 |
| GDSFXC28L0100 | Asetilen | C2H2 |
| GDSFXC29L0100 | Asetik Asit | C2H4O2 |
| GDSFXC31L0100 | Sikloheksan | C6H12 |
| GDSFXC32L0100 | Siklopentan | C5H10 |
| GDSFXC22L0100 | İzo-bütan | C4H10 |
| GDSFXC24L0100 | İzo-oktan | C8H18 |
| GDSFXC21L0100 | n-Propanol | C3H8O |
| GDSFXC37L0100 | Stiren | C8H8 |
| GDSFXC38L0100 | Propilen | C3H6 |
| GDSFXC07L0100 | Ksilen | C8H10 |
