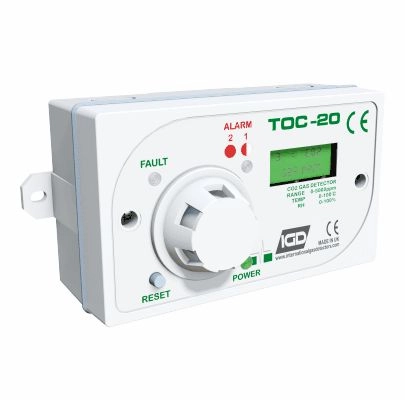

TOC-20 Refrigerant Gas Detector
IGD
TOC-20 Refrigerant Gas Detector
The TOC-20 Refrigerant Gas Detector contributes to facilities’ compliance with the F-Gas Regulation (F-Regs) and EN 378 standards by ensuring refrigerant gases are measured accurately. Its simple design and easy integration into existing or newly planned control systems make the TOC-20 the refrigerant gas detector of choice for facility engineers.
The TOC-20 Refrigerant Gas Detector can operate independently (standalone) or be integrated into existing control systems within the facility.
The TOC-20 refrigerant gas detector is the ideal solution to ensure your facility or deep freezer complies with both F-Gas regulations and the EN 378 standard. The sensor can detect multiple F-gases, including R22, R404a, R407c, R134a, R410a, and more. Our TOC-20 refrigerant gas detector is an independent monitor with relay, 4-20mA, and 0-10V outputs. This allows the detector to be integrated into, for example, refrigerant control systems throughout the facility or building management systems. In addition, the TOC-20 refrigerant gas detector has a user-friendly interface with a color RGB display and an internal audible alarm. The display shows live gas readings.
Industry Standard 4-20mA Output
Standard 2-Gang Pattress Mounting
Dado Mounting or Wall Mounting
Pre-Calibrated
Calibration Possible During Service
Replaceable Sensor
Weight 200g
4-20mA Output
Range Accuracy +/-2%
Temperature = -5 to 55 degrees C
IP54
TUV Tested
R22
R401a
R401B
R408A
R409A
R134A
R404A
R416A
R507
R410A
R411A
