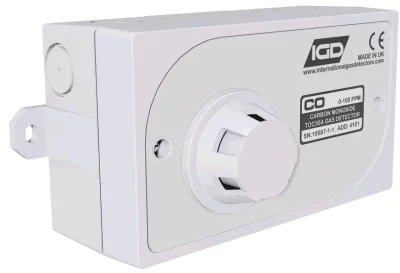

TOC-30 Analogue Gas Detector

Our TOC-30 series analog gas detector uses the legacy 4-20mA output communication. This allows customers to easily integrate our detectors into third-party controllers or BMS systems. Thus, they obtain a versatile and cost-effective gas detector.

This series of safe area gas detectors is manufactured in robust ABS enclosures that offer various advantages. Sealing is molded as part of the enclosure, which houses the detector and electronics in separate compartments. The detector is protected by a unique labyrinth arrangement that provides both dust and splash protection.

Our analog gas detectors utilize industry-leading, long-lasting sensor technology. This ensures customers have a reliable gas detector that reduces long-term maintenance costs.

Industry Standard 4-20mA Output

Standard 2 Gang Pattress Mount

Dado Mount or Wall Mount

Pre-calibrated

In-Service Calibration Possible

Replaceable Sensor

Weight 200g

Power – 18-28V DC (Loop Powered)

4-20mA Output

+/-2% of Range Accuracy

Temperature = -5 to 55 degrees C

IP54

TUV Tested

Carbon Monoxide (CO) 0-100ppm

Ethylene (C2H4) 0-200ppm

Formaldehyde (CH2O) – 0-5ppm

Carbon Dioxide (CO2) – 0-5000ppm or 0-5% VOL

Ethylene Oxide (ETO) – 0-10ppm

Hydrogen (H2) – 0-1000ppm

Hydrogen Sulphide (H2S) – 0-50ppm

Hydrogen Bromide (HBR) – 0-20ppm

Hydrogen Chloride (HCL) – 0-10ppm

Hydrogen Cyanide (HCN)- 0-10ppm

High range Carbon Monoxide (HCO) – 0-2000ppm

Oxygen (O2) – 0-25% VOL.

Ozone (O3) 0-5ppm

Ammonia (NH3) – 0-100ppm up to 0-5000ppm

Volatile Organic Compounds (VOC) – 0-200ppm and 0-2000ppm

Infrared Flammable (IRF) – 0-100% LEL

Nitric Oxide (NO) – 0-25ppm

Nitrogen Dioxide (NO2) – 0-5ppm

Flammable (FLAM) – 0-100%LEL

Silane (SIH4) – 0-10ppm

Sulphur Dioxide (SO2) – 0-5ppm

Carbon Disulphide (CS2) – 0-100ppm
