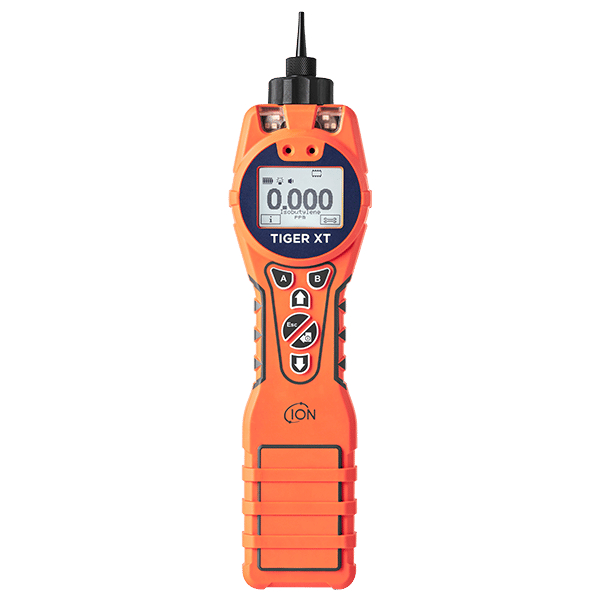

Tiger Portable VOC and Benzene Gas Detector
ION
Tiger Portable VOC and Benzene Gas Detector
The Tiger XT’s photoionisation detection (PID) technology has been independently verified as best performing on the market for speed, accuracy, resistance to humidity and contamination, thanks to its patented Fence Electrode Technology. Its patented Fence Electrode Technology and anti-contamination design ensures optimal performance within humid and heavily contaminated atmospheres, extending run time in the field.
The Tiger XT is the most advanced handheld VOC detector on the market with the widest measurement range, accurately detecting gases down to 1 part per billion (ppb) up to 20,000 part per million (ppm). Tiger XT has the fastest response time on the market of just two seconds, and is as quick to clear down. The Tiger XT handheld VOC gas detector can detect over 750 VOCs and toxic compounds!
Key Features
- Improved robust design can withstand harsh environments
- Large internal gas table with over 750 VOCs & toxic compounds
- <2 second response time, one of the fastest and most accurate on the market
- Instantaneous alarms, RED & AMBER with loud 95 dBA sounder
- Humidity resistant and anti-contamination design ensures optimal performance
Typical Applications
- Environmental Monitoring
- Soill Contamination Detection
- VOCs in Landfill
- Confined Space Entry
- Emergency Response
- Wing Tank Entry
- Medical Gases within Hospital
- Fugitive Emissions
| Specification | Value |
|---|---|
| Minimum Resolution | 10.6 eV: 1 ppb or 0.001 mg/m3*** 11.7 eV: 0.6 ppm (600 ppb)*** |
| Detectable Range** | 10.6 eV: 1 ppb up to 20,000 ppm*** 11.7eV: 9,000 ppm***# |
| Response Time | 10.6 eV: T90 < 2 seconds 11.7eV: <6 seconds |
| Accuracy*** | 10.6 eV: ± 5 % display reading or ± 1 digit*** 11.7 eV: ± 12 % display reading*** |
| Approvals | II 1G Ex ia IIC T4 Ga Tamb = -25 °C ≤Ta ≤ +45 °C (with lithium ion battery pack) Tamb = -25 °C ≤Ta ≤ +40 °C (with alkaline battery pack) IECEx ITS 22.0025X ITS-I22ATEX35111X ITS22UKEX0635X 3193491 conforms to UL Std. 913, 61010-1 & Certified to CAN/CSA Std. C22.2 No. 61010-1 Class 1 Division 1. Approval for Groups A, B, C & D, T4 |
| Battery Life | Li-ion: life up to 24 hours, charge time 8 hours Alkaline: 3 x AA, typically 8.5 hours life |
| Lamps | 10.6 eV Krypton PID lamp (standard) 10.0 eV and 11.7 eV available |
| Data Logging* | 120,000 points including date and stamp |
| Communication | Direct USB 1.1 communication |
| Calibration | 2 point and 3 point calibration (via calibration kit accessory) |
| Alarm | Flashing LEDs Amber (low alarm) Red (high alarm) Sounder 95 dBA at 300 mm (12″) Vibration on alarm programmed TWA and STEL* |
| Flow Rate | ≥ 220 ml/min (with blocked flow alarm) |
| Humidity | 0-99% RH (non condensing) |
| Protection | Designed to IP65 EMC tested to EN61326-1:2013, EN50270:2015 & CFR 47:2008 Class A |
| Weight & Dimensions | 370 mm (H) x 91 mm (W) x 60 mm (D) 870g |
