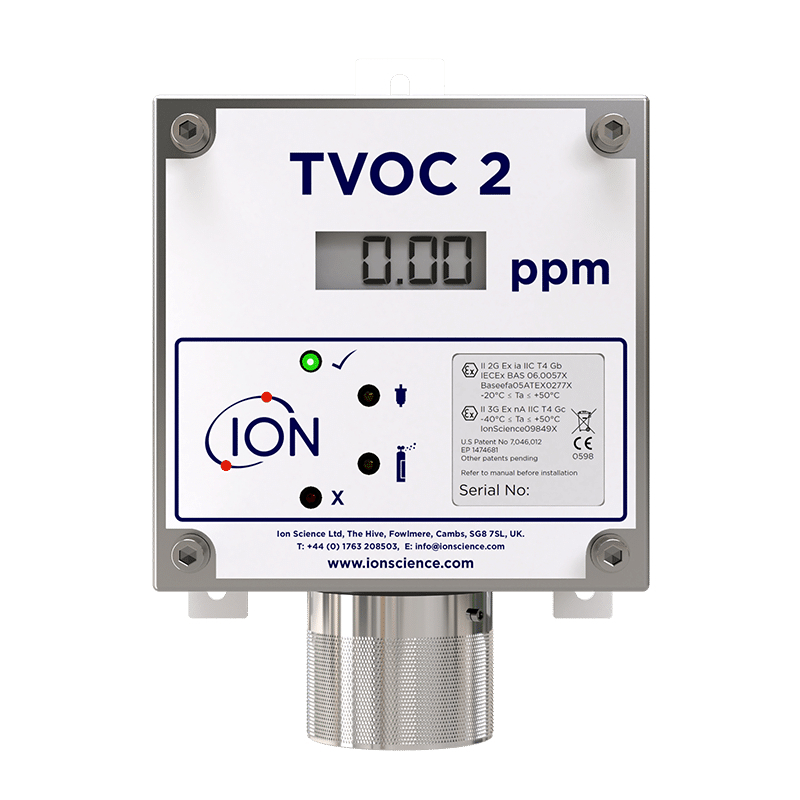

TVOC 2 Fixed VOC Gas Detector
The total VOC gas detector has a selectable detection range of 0 – 10 ppm, 0 – 100 ppm or 0 – 1000 ppm and is suitable for use in manufacturing and process industries where VOCs are commonly found. With its 4-20 mA analog output, the fixed continuous VOC gas detector can be easily integrated into a Distributed Control System (DCS) to provide alerts to elevated VOC levels and maintain control in your work environment.
The TVOC 2 gas detector has ATEX approvals, which allow it to be used in Zone 2 hazardous areas with a 3-wire connection without the need for a safety barrier. Thanks to ATEX and IECEx approvals, the TVOC 2 gas detector can be used with a safety barrier in Zone 1 hazardous areas.
| Specification | Value |
|---|---|
| Approvals | II 2G Ex ia IIC T4 Gb (-20 °C ≤ Ta ≤ +50 °C) II 3G Ex nA IIC T4 (-40 °C ≤ Ta ≤ +50 °C) Baseefa05ATEX0277X IECEx BAS 06.0057X |
| Ingress Protection | Designed to IP65 Sensor ingress protection IP54 |
| Power | 5 – 28 VDC Max 130 mA |
| Output | 4-20 mA requires a 8-35 VDC power supply For IS requirements 8-30 VDC power supply |
| Range | 0 to 10 ppm, 0 to 100 ppm, 0 to 1000 ppm (user selectable) |
| Sampling | Diffusion (can be pumped if required using an adaptor) |
| Display | 7 segment, 4 digit LCD, 4 colour LEDs |
| Response | Sensor – T90 < 5 secs |
| Accuracy | 0 to 100 ppm: ± 5 % calibration point 100 to 1000 ppm: ± 10 % at calibration points |
| Calibration | Accessed via magnetic switch 100 ppm isobutylene via calibration kit accessory |
| Temperature | Operating: – 20 to 50 °C (- 4 to 122 °F) Humidity: 0-95% RH (non-condensing) |
| Weight and Dimensions | Instrument: 1.4 kg (3.1 lb) Packed: 1.6 kg (3.5 lb) Dimensions: 188 x 126 x 78 mm (7.4 x 4.9 x 3″) |
| 4 – 20 mA Alarm Levels | Selectable 2 mA & 3.5 mA options |
