IRT-110-K Flame Detector
IRT Series
IRT-110-K Flame Detector
3 infrared sensors and 1 ultraviolet sensor are used to detect the flame of hydrocarbon group and other organic substances. It is suitable for areas such as fire sensitive sectors, military facilities, shipping.
Quick Specs
- Input: 24V DC
- Output: Relay, 4-20mA Analog (Optional)
- Up to 40 Meters Detection Range
- Compact and Durable Stainless Steel Body
- Wide Detection Angle and Fast Response Time
- Accurate Detection
- Complies with International Standards
Superior Technology in Flame Detection
Compact and Durable Design

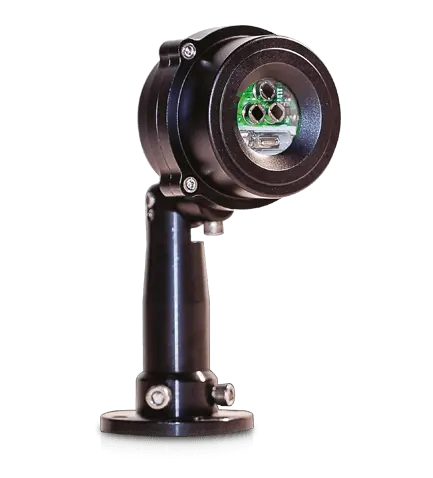

Karf&Scoot IRT-110-K Flame Detector is smaller and lighter than its competitors. It has a body made of anodized aluminum, only 64mm in diameter and 50mm in length. With its stylish black design and only 430gr weight, it does not create a bad appearance on the installation site. Its water resistant body allows it to be used indoors and outdoors.
Rapid Response Time
Thanks to its powerful sensors, Karf&Scoot IRT-110-K detects flames in the fastest way up to 40m distances with a 90° conical viewing angle. It allows you to constantly monitor your entire field with fewer detectors.
The Most Accurate Detection
Karf&Scoot IRT-110-K Flame Detector is equipped with 3 different wavelength infrared and 1 ultraviolet sensor to eliminate false alarms. Thanks to its smart algorithm; It is not affected by misleading industrial and environmental factors such as heaters, welding sparks, halogen lamps, sunlight and reflections. Real flames are detected in a very short time and the alarm goes off.
| Category | Flame Detector (IR3/UV) |
| Material | Aluminum |
| Color | Black |
| Power | DC24V ±20% (19.2~28.8V) |
| Electric Current |
Stand by: 40mA
Operation: 50mA |
| Contact Output | ON / OFF |
| Communication | RS-485 / 4 ~20mA (Optional) |
| Operating Temperature | -40°C / +85°C |
| Operating Humidity | 0 ~ 95% RH |
| Kullanım Alanları | Indoor / Outdoor |
| Size |
Diameter: 64mm
Length: 50mm |
| Weight | 430g |
| Window | Sapphire |
